Dolphin Plug connection

by norm
(n.j.)

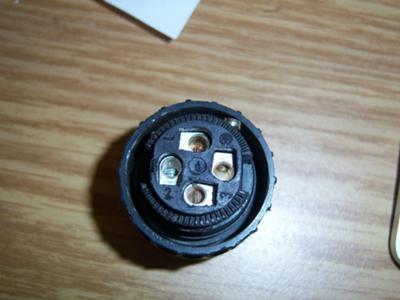

power supply connection opened up and I have a black and white wire to be attached..there are two screws herel, but I have a 50% chance of being wrong and I do not want to damage the unit...any takers?

Comments for Dolphin Plug connection

Average Rating starstarstarstarstar

Click here to add your own comments

Mar 13, 2024
Rating
starstarstarstarstar 		Amphenol Plug replacement
by: Gordon (South Africa)

Hi, I just replaced the plug at the end of my Maytronics Wave75 Robotic pool cleaner cable. I managed to carefully dismantle the old plug which is a sealed unit to confirm the correct wiring. When you face the rear of the male plug and line it up correctly; Bottom Left = Pin 2 - White wire, Bottom Right = Pin 3 - Black wire, Top Right = marked as earth - Red wire. Pin 1 is empty on my unit. Hope this the DIY enthusiasts.
Jul 30, 2022
Rating
starstarstarstarstar 		February 2022
by: Tony

The comments from February 2022 worked for me. White in 2 black in 3.
Feb 21, 2022
Rating
starstarstarstarstar 		Wiring up
by: Anonymous

The correct way to wire the plug ghat goes into the power pack is white goes to no 2 and black goes into no 3.I have wired it today
Aug 19, 2019
Rating
starstarstarstarstar 		Plug Connection for Europe
by: Moni

Hello, I have a dolphin robot and the problem, to connect new. I have a white, a black and blue cabel. And four entrances marked from 1 until 4. Where must come in which colour? Sorry my english, Iam german. Thanks for help!!!
Jul 08, 2013
Rating
starstarstarstarstar 		To verify wiring
by: Anonymous

Look inside the power supply transformer box to check the wiring or pull out the socket. Some sockets are retained with screws from the outside.

This would be the surest way to verify your wiring scheme.
Jul 07, 2013
Rating
starstarstarstarstar 		Still doesn't work
by: Anonymous

I've tried the white in 1, the black in 1. Any suggestions? I connect up another robot and it works, so the problem seems to lie with the plug.
May 28, 2013
Rating
starstarstarstarstar 		Slots/wire concerns !
by: NP

I own an Aquavac Tiger Shark and I repaired the 4 Pin Plug. The Black wire in #1 and the White wire in #2... and It works fine
Jul 26, 2012
Rating
starstarstarstarstar 		plug replacement
by: steve

where can i get this plug mine has pulled apart too many times time for a new one
Jul 25, 2012
Rating
starstarstarstarstar 		Pins
by: Anonymous

White goes to Pin 1, and Black goes to Pin 2. Nothing goes to Pins 3 + 4.
Jun 24, 2012
Rating
starstarstarstarstar 		Connector issues : what slot for each wire?
by: G.F

Is there anyone that can say which of the numbered slots (1-4, they are numbered on the connector itself) the white and the black wires go into? I think the white goes into #2, but that leaves me with 3 choices for black (and apparently #1 isn't it?).

Also, what type of tool is needed for the "screws" at the side of the slots for tightening the wire? My connector has what appears to be threaded hollow tubes that none of my small eyeglasses screwdrivers fit at all. They spin inside the tube, but the tube doesn't turn at all regardless of what I try.

Thanks,
g.f
Jun 09, 2012
Rating
starstarstarstarstar 		On Transformer Black top Right, White Top Left
by: Anonymous

On this page is a photo of the transformer outlet inside, taken with the transformer laying on it's side.
https://www.i-love-my-aquabot-automatic-pool-cleaner.com/dolphin-diagnostic-transformer.html

Looking at the outlet from the OUTSIDE and transformer right side up, it would appear that the black is top right and the white is top left.
