R14 Burned 2410075LF Rev 01 Control Board

by Santi
(Spain)

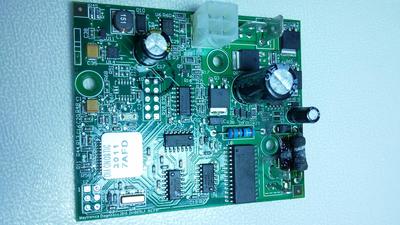

R14 Burned 2410075LF Rev 01 Control Board

The R14 Resistor is burned out.

What is the resistance value?

Thanks.

Comments for R14 Burned 2410075LF Rev 01 Control Board

Average Rating starstarstarstarstar

Click here to add your own comments

May 13, 2024
Rating
starstarstarstarstar 		Replacing 2410075LF Rev 01
by: Anonymous

Hi, I'm wondering if I can use PCB board
2410110LF - 01 NEW DYN PRM MAYTRONICS
instead of 2410075LF Rev 01 which is faulty and not working. Thanks.
Apr 19, 2024
Rating
starstarstarstarstar 		D2
by: Anonymous

Pouvez vous identifier le composant D2 et les deux résistances bleu
Merci
Oct 25, 2023
Rating
starstarstarstarstar 		R14 Value
by: Anonymous

R14 = 50 ohms
Aug 20, 2023
Rating
starstarstarstarstar 		I Need 2410075LF Rev 01 Control Board
by: Javier

Hello,
I need to buy a control 2410075LF Rev 01.
Please, can someone give me information where to buy it?
jafjaf27@gmail.com
Regards
Nov 15, 2022
Rating
starstarstarstarstar 		maytronics 2410076LF board
by: Anonymous

Hi do you have big rrsolution picturess, my board burned and som chip smd not visible. Thanks

z.bojan@hotmail.com
Jul 12, 2022
Rating
starstarstarstarstar 		R38 Resistor
by: Anonymous

Hello,
anyone knows the value of resistor R38 ?
Thank you
Jan 20, 2020
Rating
starstarstarstarstar 		resistor + diode question
by: Anonymous

Hello,
I confirm resistor value is 0,51 ohm, 1% tolerance, at least 3W from the size of it.
Could you please tell me the value on diode D2 on your board? (next to resistor)
Thank you.
Jan 16, 2020
Rating
starstarstarstarstar 		Photo
by: Anonymous

If you need dome foto frontal my board. Ask me.
Jan 16, 2020
Rating
starstarstarstarstar 		D2 value
by: Anonymous

D2 valí is YK OBA. Regards
Feb 01, 2019
Rating
starstarstarstarstar 		Need 2410075LF Rev 01 Control Board
by: noelia

Hello, i need to buy a control 2410075LF Rev 01. Please info
Jul 18, 2018
Rating
starstarstarstarstar 		D2 value
by: Anonymous

Hello, likewise what is value of D2 diode, between the two big blue resistors?
May 14, 2018
Rating
starstarstarstarstar 		R14 VALUE
by: MARK

From a few different sources, I've been able to determine that R14 is 0.5Ω, 3W

I have yet to perform the repair, but the seized wheel bearings seem to be the cause for me.
Apr 19, 2018
Rating
starstarstarstarstar 		R14 color code
by: ADMIN

I have R-14 from a Rev3 board

5 bands

Black-Green-Brown-Silver-Brown

Hope that helps
Apr 19, 2018
Rating
starstarstarstarstar 		DITTO
by: MARK

I have the same problem. Has anyone determined the R14 value? Thanks: info@markmroz.com
Nov 02, 2017
Rating
starstarstarstarstar 		R14
by: Electronics repair

Can you take a clear photo at R14 so I can you the value of that resistor.
Aug 29, 2017
Rating
starstarstarstarstar 		Exact same issue, Exact same board
by: Anonymous

Ugh! Me too. Exact same issue. I won't buy the $400 motor assembly for one bad resistor on a circuit board!

please help if you found a solution.

alagrad0308@gmail.com
May 30, 2017
Rating
starstarstarstarstar 		same problem
by: john

I have the same exact problem with mine,,,can you purchaser a replacement board? please email jjd555@aol.com- thank you
